HIT H-100 Hand Winch - 1200 lbs Capacity - #16-HW1200
This product is rated for overhead lifting.
Earn Rewards with Loyal Lifter's Club
CA Prop 65
Product Description
HIT H-100 Series Heavy-Duty Manual Brake Winches for Lifting and Pulling Applications
The HIT H-100 Series hand winches deliver reliable, controlled lifting and pulling performance for industrial, marine, automotive, and utility applications. Featuring automatic load-actuated braking and rugged steel construction, these winches provide secure load holding and smooth manual operation in demanding environments.
Designed for versatility, the H-100 Series is commonly used for raising and lowering boats, positioning equipment, pulling vehicles, and supporting crane or material handling operations. The enclosed gear and brake system protects internal components while ensuring dependable performance in both indoor and outdoor conditions.
- Automatic load-actuated braking system securely holds loads in any position
- Single brake pawl design on 800 lb and 1200 lb models for dependable load holding
- Dual brake pawl design on 1800 lb and 2600 lb models for increased safety and load security
- Heavy-gauge steel construction ensures long service life and durability
- Fully enclosed gear and brake housing protects components from dust and weather
- Corrosion-resistant enamel finish improves durability in harsh environments
- Ideal for lifting, pulling, positioning, and material handling applications
- Wire rope sold separately to allow customization based on application requirements

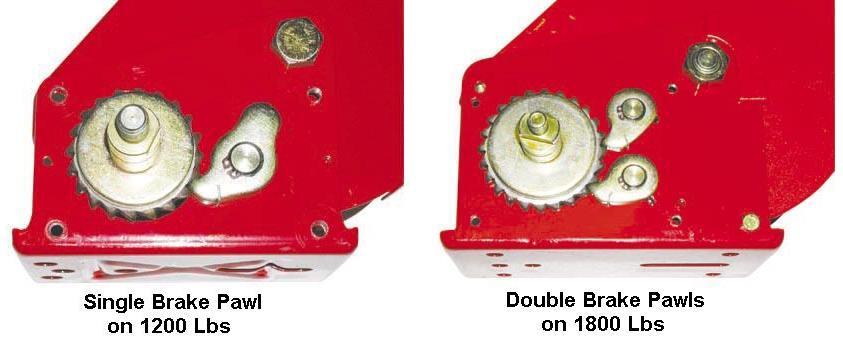

Brake System Comparison
H-100 Series Winch Specifications
| Stock No. | Rated Capacity (lbs) | Brake Pawl Type | Gear Ratio | Hand Force Required (lbs) | Recommended Rope Size | Net Weight (lbs) |
|---|---|---|---|---|---|---|
| 16-HW800-3 | 800 | Single Pawl | 4.1 : 1 | 44 | 5/32" | 6.5 |
| 16-HW1200-3 | 1200 | Single Pawl | 4.1 : 1 | 33 | 3/16" | 7.25 |
| 16-HW1800-3 | 1800 | Dual Pawl | 5 : 1 | 48 | 9/32" | 17.5 |
| 16-HW2600-3 | 2600 | Dual Pawl | 10 : 1 | 41 | 5/16" | 23 |
The HIT H-100 Series provides dependable manual winching performance with built-in safety features, making it a trusted solution for controlled lifting and pulling across a wide range of industrial and commercial applications.
Specifications
Attachments
Related Items
Related Products
HIT Tools
HIT H-100 Hand Winch - 2600 lbs Capacity - #16-HW2600
HIT Tools

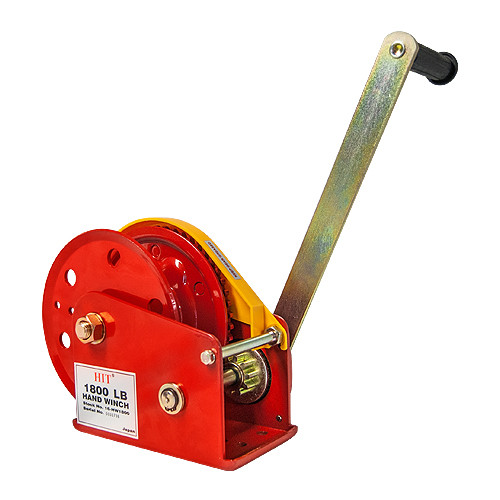

HIT H-100 Hand Winch - 1800 lbs Capacity - #16-HW1800
