Crosby 7/8" G-209A Alloy Screw Pin Anchor Shackle - 9-1/2 Ton WLL - #1017560
Made in the United States of America!
We are an Authorized Crosby Distributor.
This product is rated for overhead lifting.
Need it fast? We stock many items, but some rigging and safety gear has longer lead times. Contact us before placing urgent orders.
Earn rewards points.
CA Prop 65
Product Description
Crosby G-209A Alloy Screw Pin Anchor Shackles – Grade 8 Performance for Critical Rigging
Crosby G-209A Alloy Screw Pin Anchor Shackles deliver the strength and reliability demanded in critical lifting, towing, and rigging applications. Forged from high-strength alloy steel and Quenched & Tempered, these shackles are engineered to meet the performance requirements of Grade 8 shackles, offering higher capacity and toughness than standard carbon models. Each shackle is permanently marked with its Working Load Limit and features Crosby’s signature Red Pin® for easy identification of genuine Crosby quality.
Features
- Forged Alloy Steel Construction: Bows and screw pins are forged from high-strength alloy and Quenched & Tempered for maximum performance.
- Grade 8 Performance: Meets the performance requirements of Grade 8 shackles, offering superior strength and ductility.
- Permanent Identification: Each shackle is marked with Working Load Limit (WLL) and Crosby name for traceability.
- Finish Options: Hot-dip galvanized for corrosion resistance; 3/8" size is mechanically galvanized.
- Temperature Rated: Safe for continuous service from −40°F (−40°C) to 400°F (204°C).
- Proof Tested and Certifiable: Can be furnished proof tested with certificates to ABS, DNV, Lloyds, or other standards upon request (additional charges may apply).
- Design Factor: 5:1. Proof load equals 2× the Working Load Limit (WLL).
- Standards Compliance: Meets or exceeds ASME B30.26 requirements for identification, ductility, design factor, proof load, and temperature. Also meets impact and traceability standards beyond ASME scope.
- Federal Specification: Conforms to RR-C-271H, Type IVA, Grade B, Class 2 (except contractor provisions).
- Genuine Crosby Quality: Look for the Red Pin® — the mark of authentic Crosby shackles.
Specifications

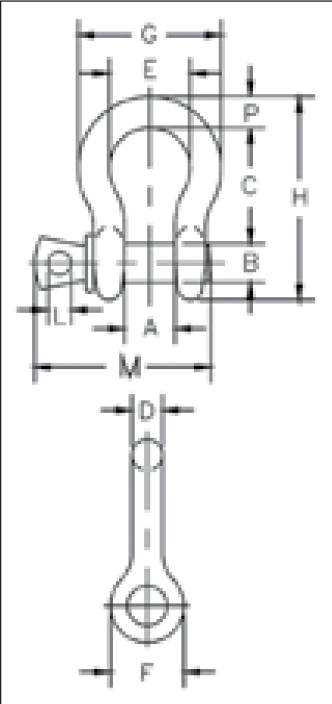

| Nominal Size (in) | WLL (t) | Stock No. | Weight (lb) | A | B | C | D | E | F | G | H | L | M | P | Tolerance (± in) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | A | |||||||||||||||
| 3/8 | 2 | 1017450 | 0.31 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 1.78 | 2.49 | 0.25 | 2.03 | 0.38 | 0.13 | 0.06 |
| 7/16 | 2.67 | 1017472 | 0.38 | 0.75 | 0.50 | 1.69 | 0.44 | 1.16 | 1.06 | 2.03 | 2.91 | 0.31 | 2.38 | 0.44 | 0.13 | 0.06 |
| 1/2 | 3.33 | 1017494 | 0.63 | 0.81 | 0.63 | 1.88 | 0.50 | 1.31 | 1.19 | 2.31 | 3.28 | 0.38 | 2.69 | 0.50 | 0.13 | 0.06 |
| 5/8 | 5 | 1017516 | 1.38 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.50 | 2.94 | 4.19 | 0.44 | 3.34 | 0.69 | 0.13 | 0.06 |
| 3/4 | 7 | 1017538 | 2.35 | 1.25 | 0.88 | 2.81 | 0.75 | 2.00 | 1.81 | 3.50 | 4.97 | 0.50 | 3.97 | 0.81 | 0.25 | 0.06 |
| 7/8 | 9.5 | 1017560 | 3.61 | 1.44 | 1.00 | 3.31 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 0.50 | 4.50 | 0.97 | 0.25 | 0.06 |
| 1 | 12.5 | 1017582 | 5.32 | 1.69 | 1.13 | 3.75 | 1.00 | 2.69 | 2.38 | 4.69 | 6.56 | 0.56 | 5.07 | 1.06 | 0.25 | 0.06 |
| 1-1/8 | 15 | 1017604 | 7.25 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | 0.63 | 5.59 | 1.25 | 0.25 | 0.06 |
| 1-1/4 | 18 | 1017626 | 9.88 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3.00 | 5.75 | 8.25 | 0.69 | 6.16 | 1.38 | 0.25 | 0.06 |
| 1-3/8 | 21 | 1017648 | 13.25 | 2.25 | 1.50 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 0.75 | 6.84 | 1.50 | 0.25 | 0.13 |
Design Factor: 5:1. Proof Load = 2× WLL. Meets ASME B30.26 and Federal Specification RR-C-271H. For side-loading reductions and application limits, see manufacturer warnings.
