Skookum 1-3/4" 59A Sheet Pile Shackle - 24 Ton WLL
Made in the United States of America!
This product is rated for overhead lifting.
Need it fast? We stock many items, but some rigging and safety gear has longer lead times. Contact us before placing urgent orders.
Earn rewards points.
CA Prop 65
Product Description
Skookum 59A Sheet Pile Shackle
The Skookum 59A Sheet Pile Shackle is purpose-built for pulling and handling sheet piling in construction and marine applications. Forged from high-strength alloy steel, it features a quick-opening, captured pin with a counterweight handle that locks securely when closed—no tools required. Built to Skookum’s Gold Standard Forging quality and compliant with ASME B30.26-1.
Key Features:
- Engineered specifically for pulling and extracting sheet pile
- Forged alloy steel construction for superior strength and durability
- Quick-release pin stays attached; counterweight handle locks downward when engaged
- 5:1 design factor for added safety and performance
- Replacement pins available (replacement or repair by Skookum only)
- Meets ASME B30.26-1 compliance requirements
Quick Specs:
- Size Range: 1" – 2"
- Working Load Limit: 8 – 30 tons (depending on size)
- Material: Forged alloy steel
- Design Factor: 5:1

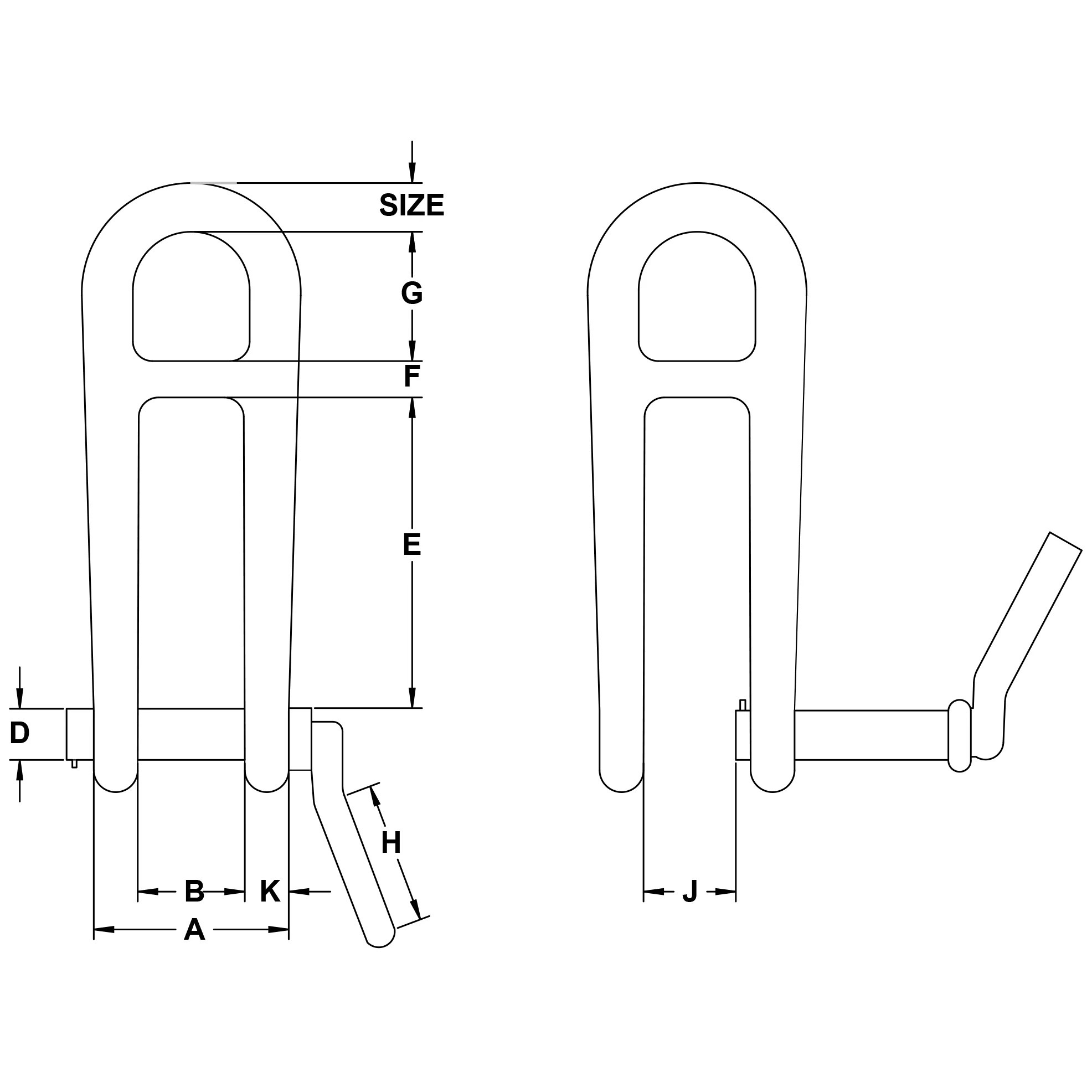

Dimensions & Capacities:
| All dimensions in inches | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size | WLL (T) | J | A | B | C | D | E | F | G | H |
| 1 | 8 | 1.75 | 4.25 | 2.25 | 1.00 | 1.13 | 7.00 | 0.63 | 2.38 | 5.00 |
| 1-1/8 | 10 | 1.88 | 4.50 | 2.50 | 1.00 | 1.25 | 8.00 | 0.75 | 3.00 | 5.00 |
| 1-1/4 | 12 | 2.00 | 5.25 | 2.75 | 1.25 | 1.38 | 9.00 | 0.88 | 3.00 | 5.00 |
| 1-1/2 | 17 | 2.13 | 6.25 | 3.00 | 1.50 | 1.63 | 10.0 | 1.13 | 3.50 | 6.00 |
| 1-3/4 | 24 | 2.50 | 7.00 | 3.50 | 1.75 | 2.00 | 11.0 | 1.25 | 4.00 | 7.00 |
| 2 | 30 | 3.00 | 8.00 | 4.00 | 2.00 | 2.25 | 12.0 | 1.38 | 4.50 | 8.00 |
