Skookum
Skookum 1-5/8" 320 Alloy Bolt Type Anchor Shackle - 35 Ton WLL
Made in the United States of America!
This product is rated for overhead lifting.
Need it fast? We stock many items, but some rigging and safety gear has longer lead times. Contact us before placing urgent orders.
Earn rewards points.
CA Prop 65
Product Description
Skookum 320 Bolt Type Anchor Shackles
The Skookum 320 Alloy Bolt Type Anchor Shackles are engineered for the most demanding lifting and rigging applications. Forged, quenched, and tempered in Oregon, these USA-made shackles deliver exceptional strength, consistency, and reliability. Each unit is permanently marked with size and WLL, along with heat codes on both the bale and pin for complete traceability. Designed to exceed expectations where safety and longevity are critical.
Key Features:
- Forged, quenched, and tempered for maximum strength and uniform performance
- Permanent size and WLL markings with heat codes on bale and pin
- Bolt-type anchor design ideal for semi-permanent and vibration-prone installations
- Available finishes: enamel paint, zinc plate, or galvanized
- Manufactured in Oregon, USA — Skookum Gold Standard Forging
- Complies with ASME B30.26-1 requirements
Quick Specs:
- Size Range: 1/2" – 3-1/2"
- Working Load Limit: 5 – 150 tons (by size)
- Design Factor: 5:1
- Origin: Made in Oregon, USA

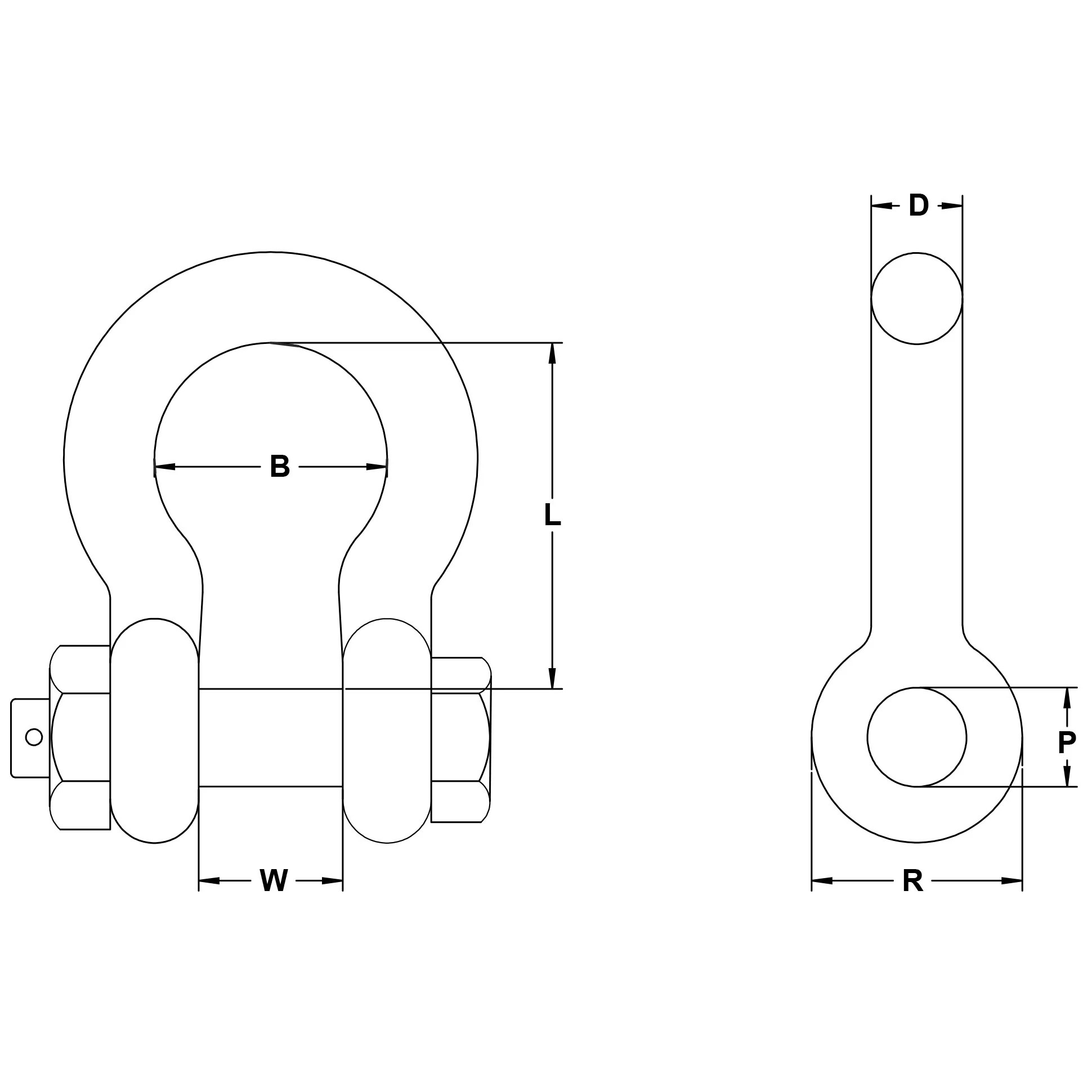

Dimensions & Capacities:
| All dimensions in inches | |||||||
|---|---|---|---|---|---|---|---|
| Size | WLL (tons) | D (Bale Dia.) | W (Jaw Opening) | L (Inside Height) | B (Inside Width) | R (Ear Width) | P (Pin Dia.) |
| 1/2 | 5 | 0.50 | 0.81 | 1.88 | 1.28 | 1.44 | 0.63 |
| 5/8 | 7 | 0.63 | 1.06 | 2.50 | 1.75 | 1.63 | 0.75 |
| 3/4 | 9 | 0.75 | 1.25 | 2.88 | 2.00 | 1.84 | 0.88 |
| 7/8 | 12 | 0.88 | 1.44 | 3.31 | 2.28 | 2.13 | 1.00 |
| 1 | 16 | 1.00 | 1.69 | 3.75 | 2.69 | 2.25 | 1.13 |
| 1-1/8 | 18 | 1.13 | 1.81 | 4.25 | 2.94 | 2.63 | 1.25 |
| 1-1/4 | 21 | 1.25 | 2.03 | 4.63 | 3.25 | 3.00 | 1.38 |
| 1-3/8 | 26 | 1.38 | 2.25 | 5.25 | 3.63 | 3.25 | 1.50 |
| 1-1/2 | 31 | 1.50 | 2.38 | 5.75 | 3.88 | 3.44 | 1.63 |
| 1-5/8 | 35 | 1.63 | 2.63 | 6.25 | 4.63 | 4.00 | 1.75 |
| 1-3/4 | 41 | 1.75 | 2.88 | 7.00 | 5.00 | 4.25 | 2.00 |
| 2 | 52 | 2.00 | 3.25 | 7.75 | 5.75 | 5.00 | 2.25 |
| 2-1/4 | 65 | 2.25 | 3.75 | 8.63 | 6.38 | 5.50 | 2.50 |
| 2-1/2 | 78 | 2.50 | 4.00 | 9.50 | 7.00 | 6.00 | 2.75 |
| 2-3/4 | 91 | 2.75 | 4.38 | 10.25 | 7.63 | 6.50 | 3.00 |
| 3 | 117 | 3.00 | 4.75 | 11.00 | 8.25 | 7.00 | 3.25 |
| 3-1/2 | 150 | 3.50 | 5.50 | 13.00 | 9.50 | 8.00 | 3.75 |
