Meadow Burke 5T RL-35 Rapid Lift Ring Clutch
Made in Germany.
This product is rated for overhead lifting.
Need it fast? We stock many items, but some rigging and safety gear has longer lead times. Contact us before placing urgent orders.
Earn rewards points.
CA Prop 65
Product Description
Meadow Burke RL-35 Rapid Lift Ring Clutch
The Meadow Burke RL-35 Ring Clutch is a durable, high-capacity lifting device designed for precast concrete handling applications. It connects securely to cast-in anchors within the Rapid Lift or Frimeda-style system, enabling quick attachment, reliable load transfer, and smooth rotation during lifting, turning, and installation.
Key Features
- 360° rotating bail allows flexible lifting and load control.
- Quick manual engagement using curved locking bolt/handle.
- Rated for vertical and angled lifts up to 60° from vertical.
- Forged steel construction with 5:1 design safety factor.
- Compatible with Meadow Burke Rapid Lift and Frimeda-style anchors.
Specifications

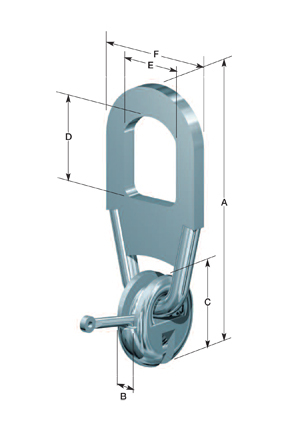

| Item No. | Load Group | Rated Capacity (ton) | A (Overall) | B | C | D | E | F | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| 79001 | 2 / 2.5T | 2.5 | 10 7/16" | 1 1/16" | 3 1/8" | 2 3/4" | 2 1/4" | 3 5/8" | 3.65 |
| 79002 | 4 / 5T | 5 | 13" | 1 7/16" | 4 1/8" | 3 3/16" | 2 9/16" | 4 1/2" | 8.65 |
| 79003 | 8 / 10T | 10 | 16 3/4" | 2" | 5 15/16" | 4 9/16" | 3 9/16" | 5 13/16" | 19.87 |
| 79170 | 22 / 26T | 26 | 23 7/8" | 2 13/16" | 8 1/4" | 7 1/4" | 4 3/4" | 8 13/16" | 55.0 |
*Capacities shown at 5:1 design factor. Dimensions and weights are approximate. Select ring clutch by load group to match anchor system rating.
Specifications
Attachments
Related Items
Related Products
Meadow Burke
Meadow Burke 10T RL-35 Rapid Lift Ring Clutch
Meadow Burke

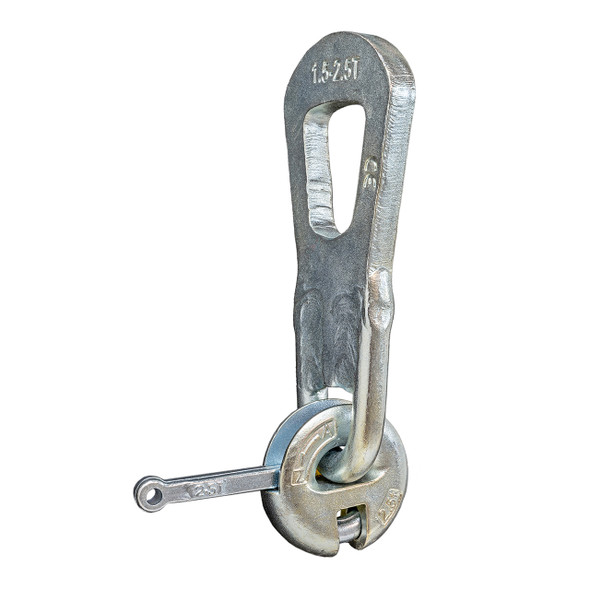

Meadow Burke 2.5T RL-35 Rapid Lift Ring Clutch
