AMH MA 25 Ton x 20 ft Hand Chain Hoist
Made in USA with Imported Components.
This product is rated for overhead lifting.
Need it fast? We stock many items, but some rigging and safety gear has longer lead times. Contact us before placing urgent orders.
Earn rewards points.
CA Prop 65
Product Description
Reliable and Rugged — MA Series Hand Chain Hoists
The MA Series Hand Chain Hoists from All Material Handling deliver dependable performance for lifting applications ranging from 0.5 t up to 30 t. These hoists are capacity-rated in metric tons. Each unit is final assembled and proof-tested in the USA and ships with a factory test certificate.
The MA Series features a heavy-duty all-steel body, plated frame components, and a fully enclosed gearing system to resist dirt and moisture. Whether you're in manufacturing, maintenance, construction, or warehouse operations, these chainfalls provide safe, smooth lifting with minimal effort.
Key Features
- Capacities: 0.5 t to 30 t (metric ratings)
- Final assembly and load testing in the USA; proof-tested at 125% of WLL; certificate included
- All-steel construction with powder-coated and plated components for corrosion resistance
- Precision-machined lift wheel and sealed ball bearings for smooth chain engagement
- Self-adjusting mechanical load brake with double pawls; asbestos-free friction discs
- Bolted hook blocks allow complete hook inspection and replacement
- Compact headroom and low hand-chain pull effort across sizes
- Load chain: USA-made Grade 80 zinc-plated alloy on most sizes; Japan/EU chain on 0.5 t model
- Standard lifts: 10, 15, and 20 ft (hand chain drop is 2 ft less than lift; custom lifts/drops available)
- Standards: ASME B30.16, OSHA, NASA-STD-8719.9; ATEX (II 3 GD c IIB 54° C X) for limited use
Optional Features
The following options are available for the MA Series hoists:
- Overload Protection: One-way clutch that slips in the lift direction (available on all sizes)

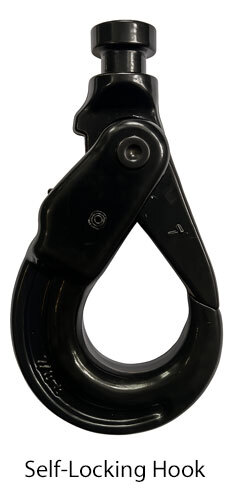

- Self-Locking Hooks: Enhanced load security (available on 1 t to 5 t)
- Shipyard Hooks: Not available on MA Series
MA Series Specifications (Metric Ratings)
| Model | Capacity (ton) | Number of Falls | Effort to Lift Full Load (lb) | Add’l Weight per Ft (lb/ft) | Weight @ 10 ft Lift (lb) | Standard Lifts Offered |
|---|---|---|---|---|---|---|
| MA005 | 0.5 | 1 | 50 | 0.74 | 24 | 10, 15, 20 ft |
| MA010 | 1.0 | 1 | 63 | 0.92 | 27 | 10, 15, 20 ft |
| MA015 | 1.5 | 1 | 66 | 1.12 | 39 | 10, 15, 20 ft |
| MA020 | 2.0 | 1 | 74 | 1.30 | 43 | 10, 15, 20 ft |
| MA030 | 3.0 | 1 | 84 | 1.88 | 77 | 10, 15, 20 ft |
| MA040 | 4.0 | 2 | 62 | 2.88 | 90 | 10, 15, 20 ft |
| MA050 | 5.0 | 2 | 78 | 2.88 | 90 | 10, 15, 20 ft |
| MA100 | 10.0 | 4 | 83 | 5.38 | 173 | 10, 15, 20 ft |
| MA200 | 20.0 | 8 | 98 × 2 | 10.76 | 418 | 10, 15, 20 ft |
| MA300 | 30.0 | 12 | 108 × 2 | 22.56 | 590 | 10, 15, 20 ft |
Notes: “Number of Falls” indicates chain reeving for the stated capacity. Hand chain drop is 2 ft less than lift. “Add’l Weight per Ft” is the additional hanging weight per extra foot of lift beyond the 10 ft base. For estimated shipping weight, add ~15% to the listed hanging weight.
- Operators must be trained; perform a pre-use visual and functional inspection each shift.
- Maintain a straight line between hooks; no side pulls or body binding against structure.
- Test the brake by lifting an inch and confirming hold before proceeding; never leave loads unattended.
- Store unloaded in a dry place and wipe down after use.
- Lubricate load chain regularly (SAE 50–90 EP oil); use EP1/EP2 grease on gearing based on temperature.
- Follow frequent/periodic inspection intervals per service class and keep dated records.
Certified and Ready to Lift
Each MA Series hoist is proof-tested at 125% of its rated working load limit to ensure brake performance and structural reliability. A factory test certificate is included with every unit, documenting inspection and assembly in the USA.
Important Safety Notice
NEVER EXCEED RATED CAPACITY. NOT FOR LIFTING PEOPLE OR SUSPENDING LOADS OVER PEOPLE. Always read and follow the operator’s manual before use.
The MA Series combines industrial strength, USA-tested reliability, and flexible options—making it a trusted choice for professionals who demand rugged performance from their manual hoisting gear.
